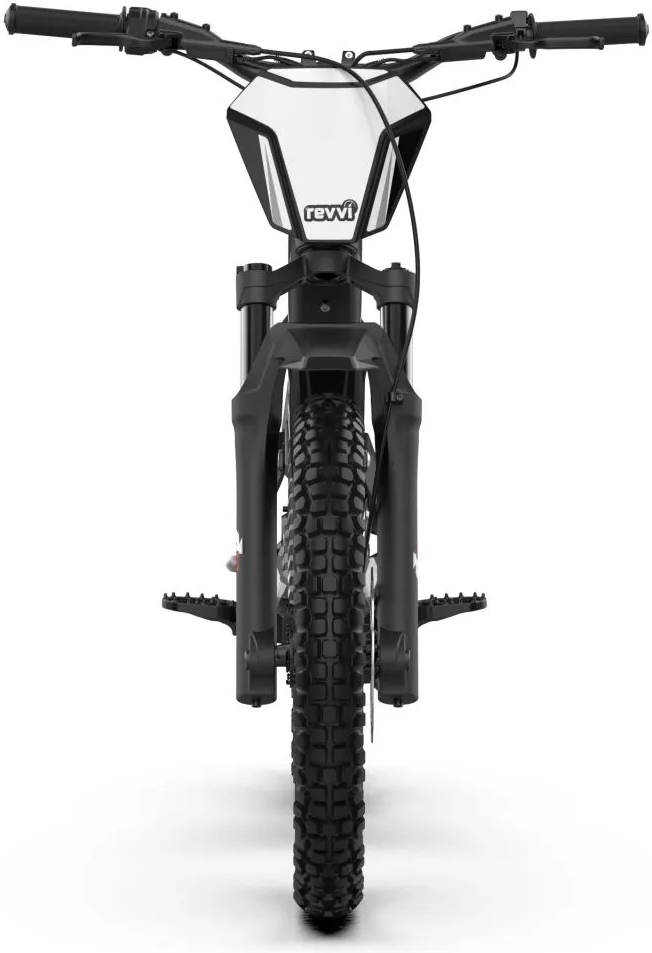

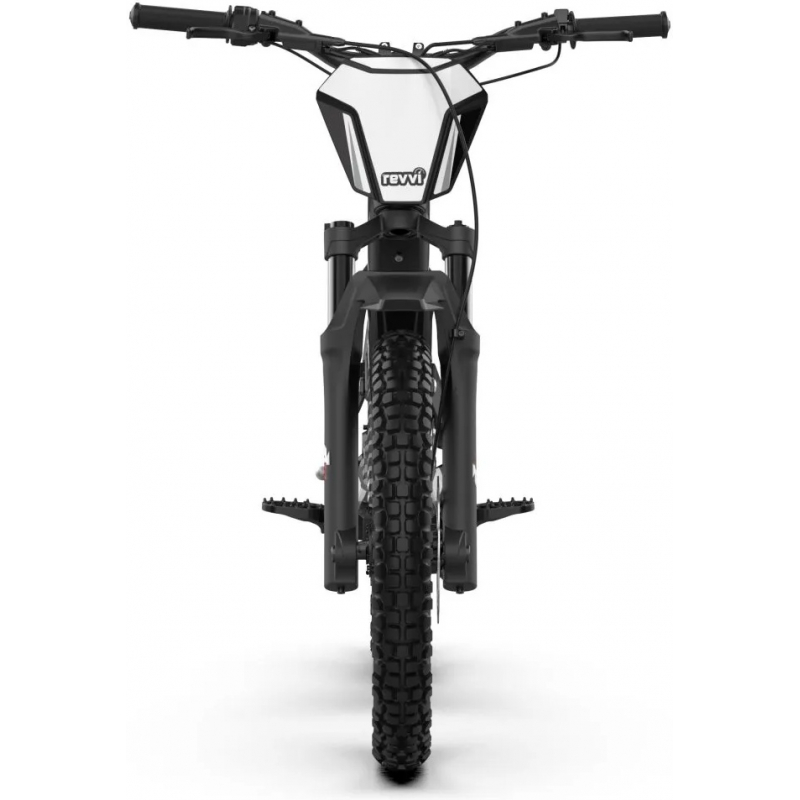

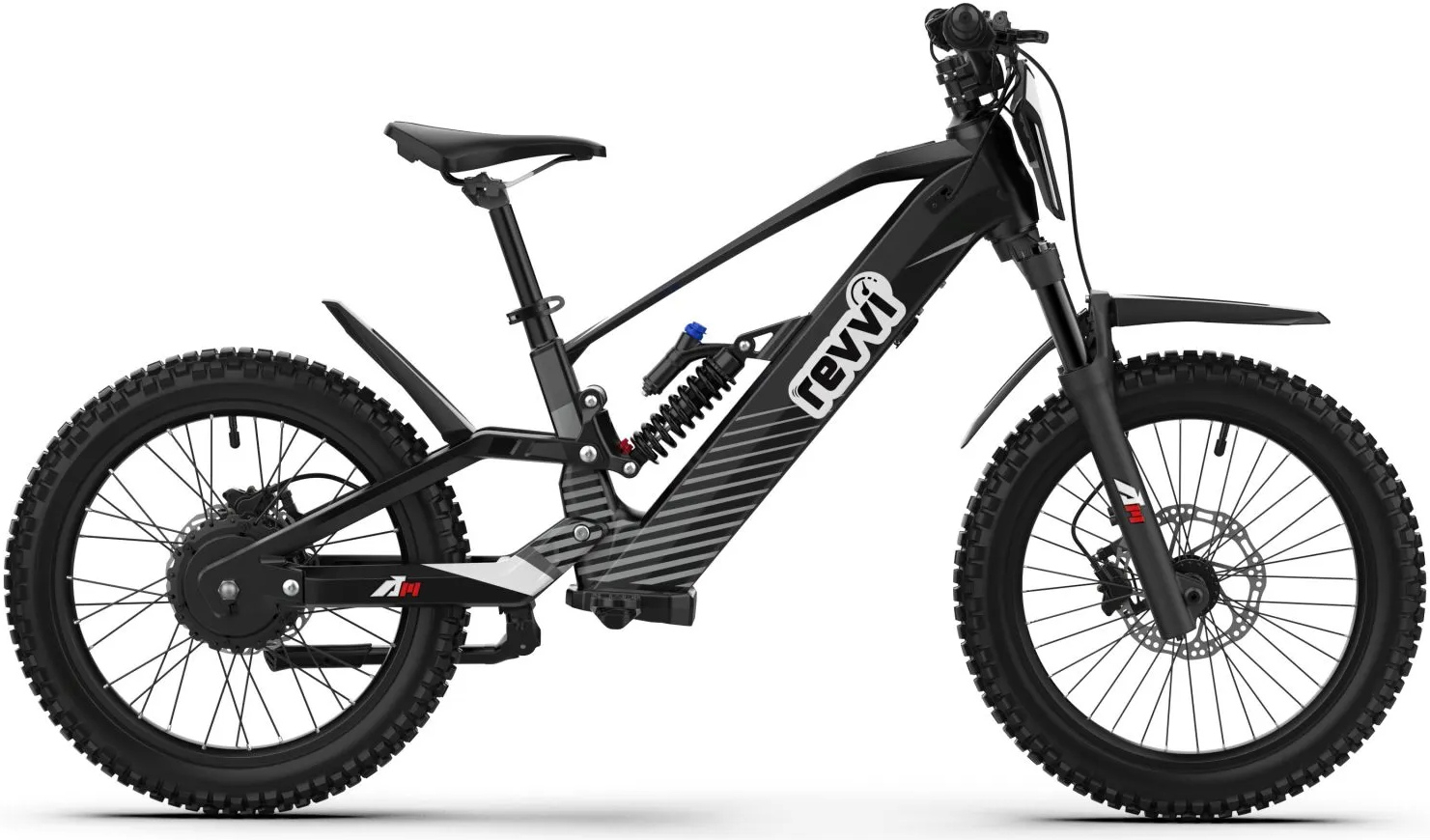

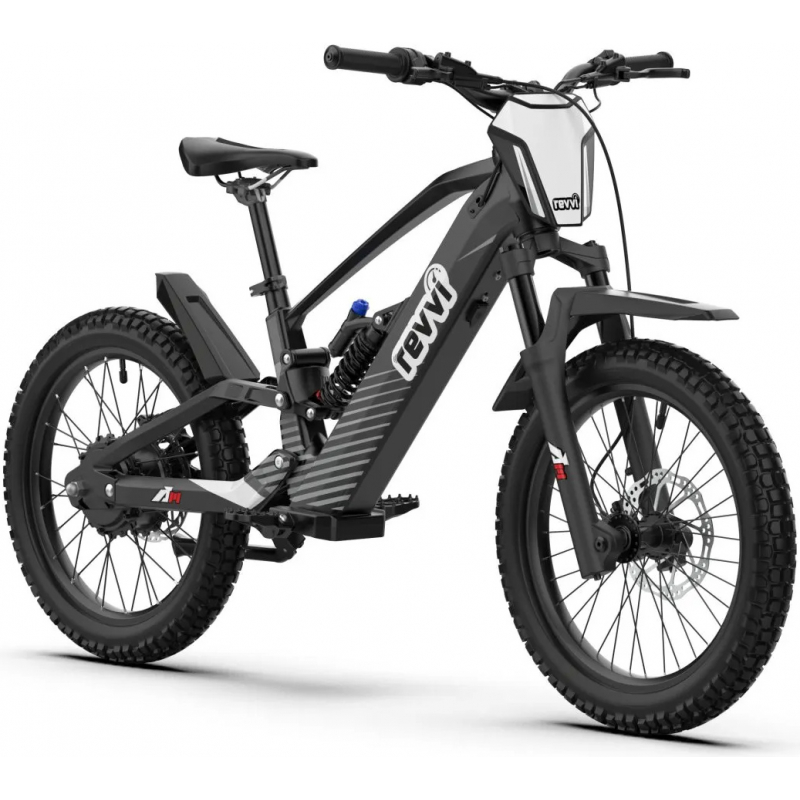

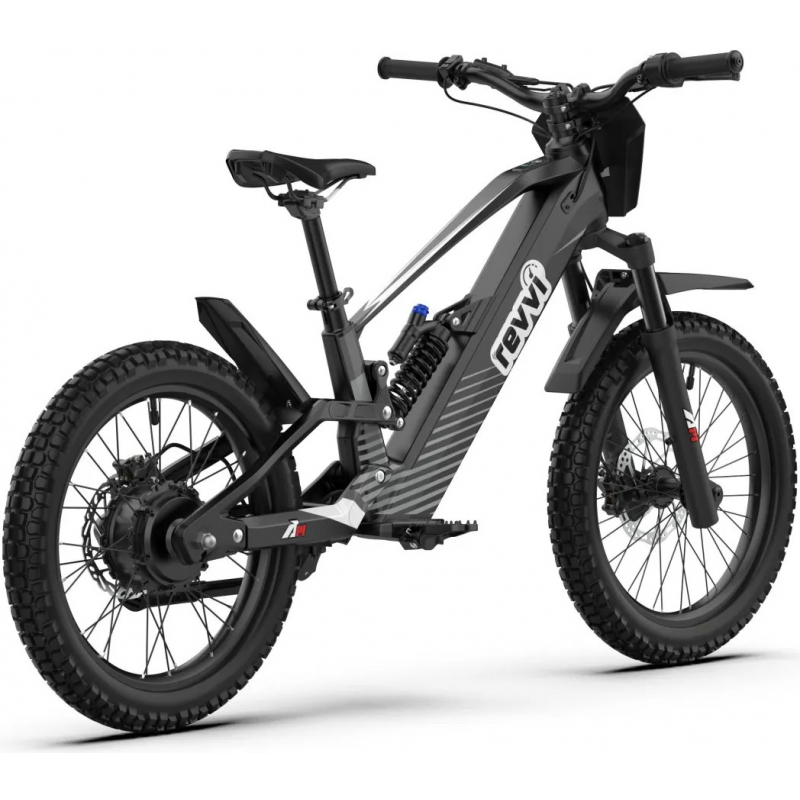

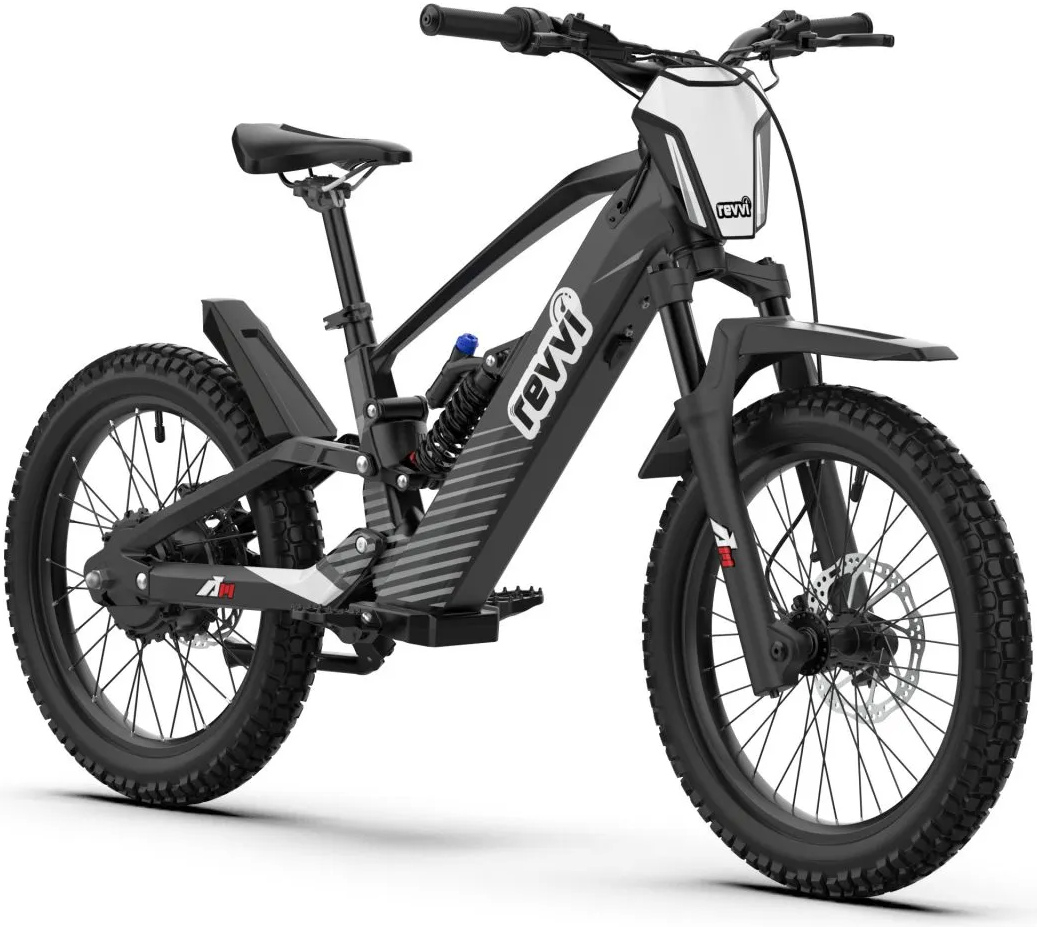

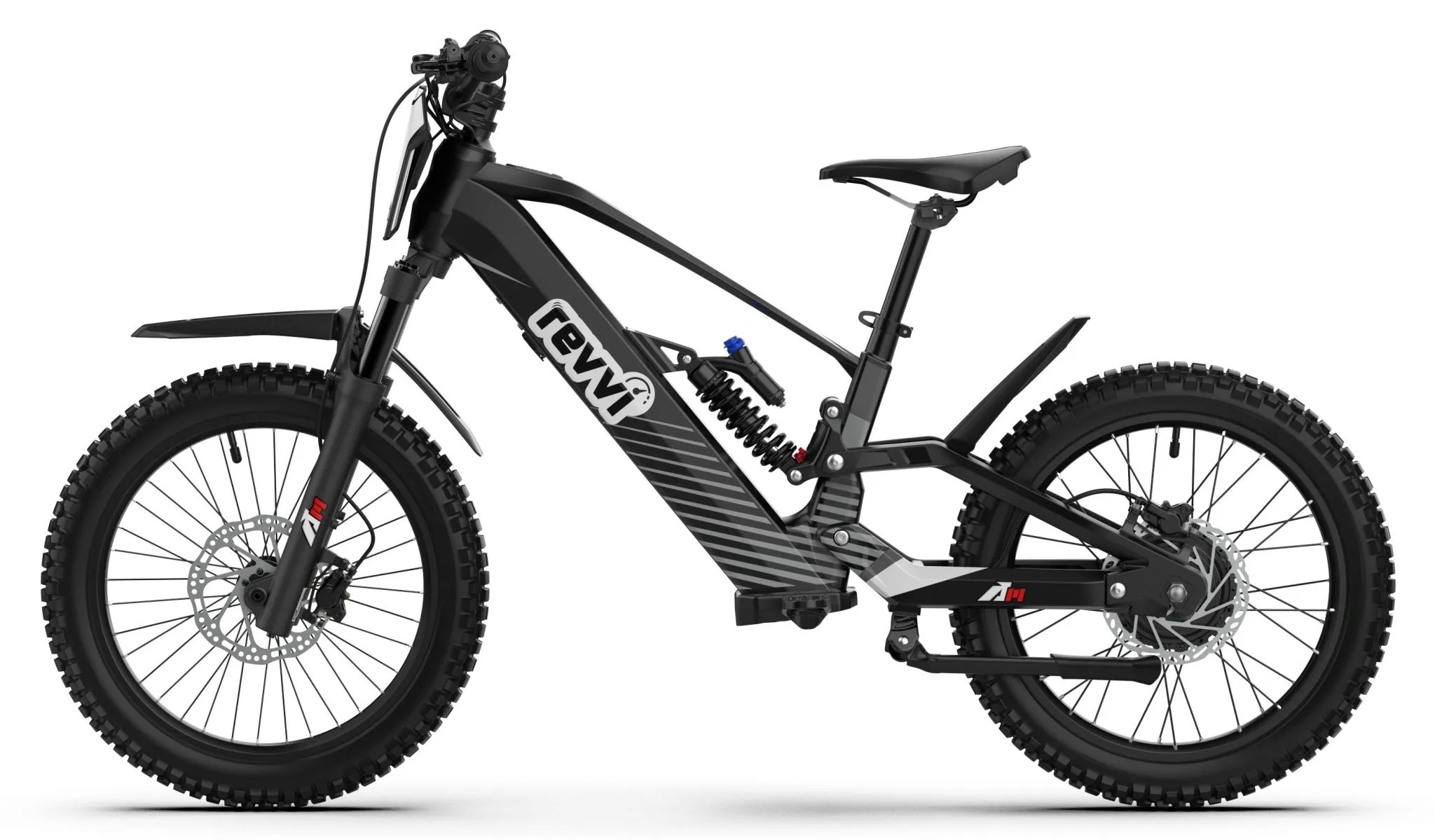

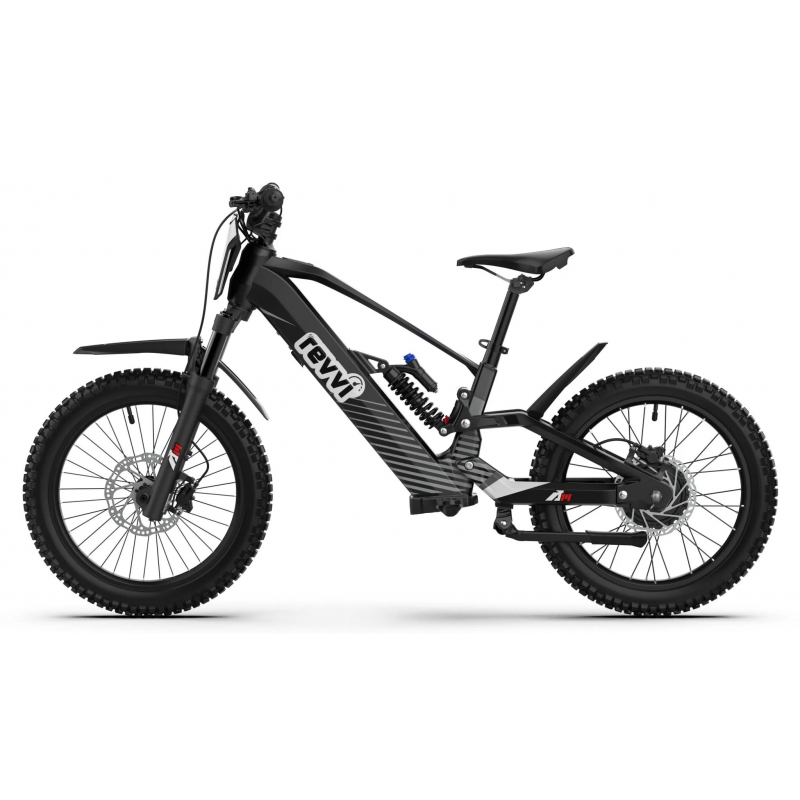

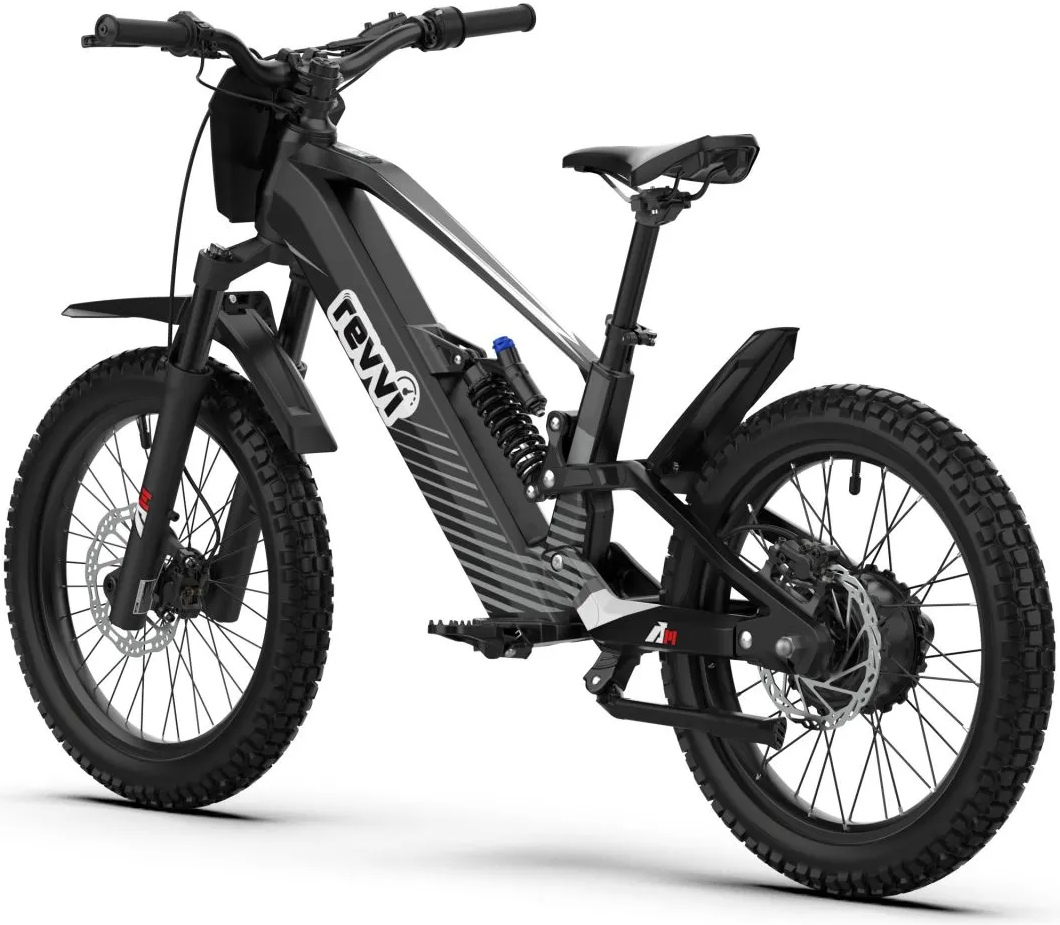

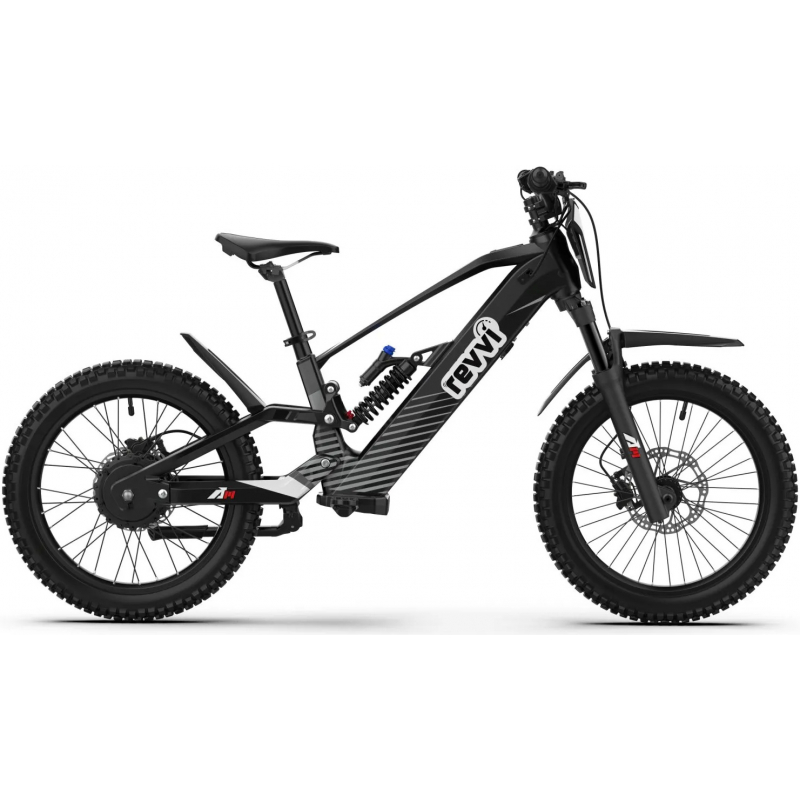

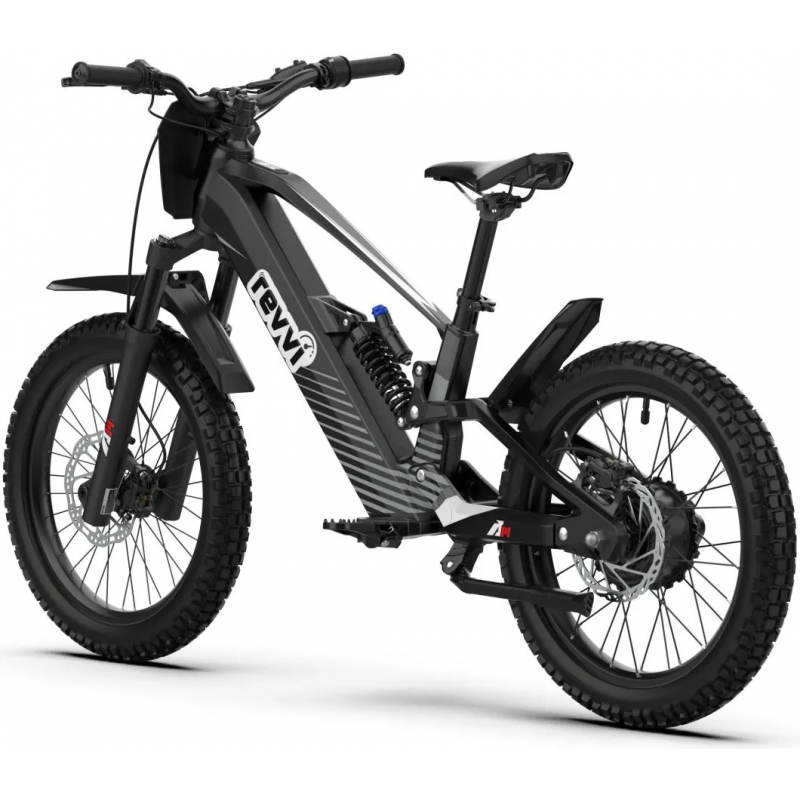

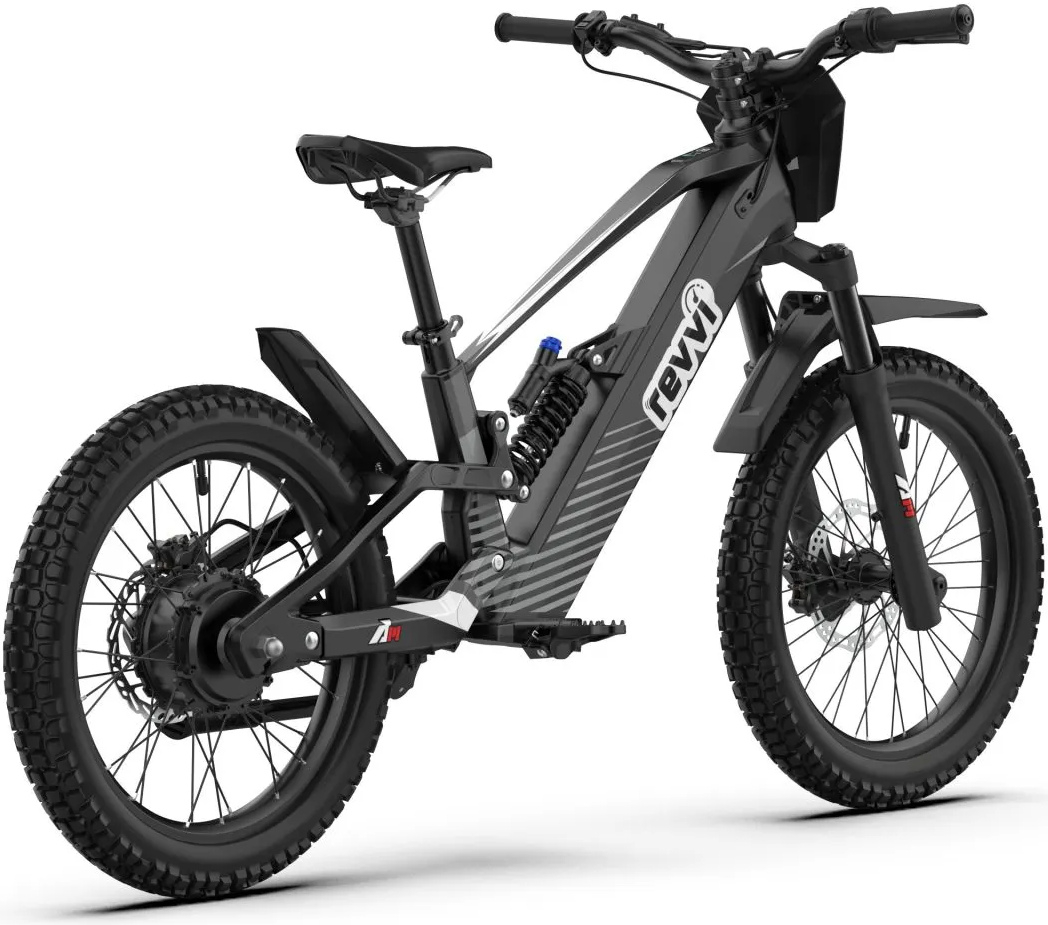

Kids 1000w 48v Electric Bike - Revvi 20" Plus - Black
1398.9996
£1,399.00
inc VAT
| Availability | Low on Stock |
|---|---|
| Supplier | Revvi |
| Brand | Revvi |
| Product Code | REVVI-20-PLUS-BLACK |
| Supplier Code | REVVI-20-PLUS-BLACK |
| Rating | | (0) |
You can purchase this product from Storm Buggies.
A high-performance electric-powered off-road bike designed for young riders aged 10 years and above. Featuring a powerful 48V 1000W brushless hub motor with up to 1500W peak power and 132 N·m torque, this lightweight machine delivers impressive performance with three selectable speed modes. Built with premium suspension components, hydraulic disc brakes, and a durable aluminium alloy frame, it’s perfect for developing riding skills on a variety of terrains.
Key Features
- Available in 1 Colour – Black
- Powerful 48V 1000W brushless hub motor with 1500W peak power and 132 N·m torque
- 48V 15AH Lithium-ion battery for extended riding sessions
- Three speed settings: 13.6 MPH / 20 MPH / 27 MPH
- Battery range: Slow speed ~1hr 20min | Medium speed ~50min | Fast speed ~30min continuous use
- Battery charge time: Approximately 5 hours
- Hub motor transmission for smooth and reliable power delivery
- Lightweight aluminium alloy frame with forged swing arm and linkage
- EXHO air front shock with adjustable compression and rebound settings
- Fastace rear spring shock with adjustable compression and rebound settings
- 153mm rear wheel travel for improved off-road performance
- Front and rear hydraulic disc brakes for confident stopping power
- TFT colour display providing clear riding information
- Durable alloy handlebars and stem
- Rubber grips for enhanced comfort and control
- Aggressive knobbly 20″ tyres for excellent traction across various terrains
- 20″ spoked rims for strength and durability
- Suitable for riders aged 10 years and above
- Net weight: 28kg
- Box Size – 147 x 26 x 76cm
Included in the Box
Every bike comes supplied with a 48V 15AH Lithium-ion Battery, battery charger and owner’s manual, providing everything needed to get riding quickly and safely.
Please note: Battery range may vary depending on speed setting, rider weight, terrain and riding conditions.
Assembly: Assembly is required for this product. Please click here for further information
Technical Specs
| Name | Value |
|---|---|
| General.PRODUCT WEIGHT | 28KG |

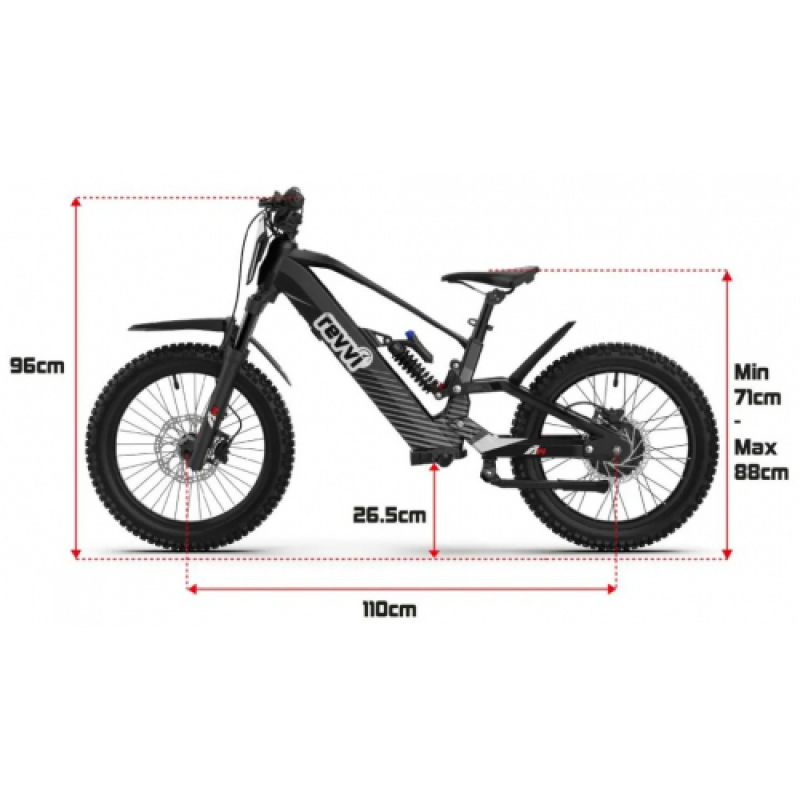

| General.HEIGHT DIMENSIONS | HANDLEBAR = 96cm / SEAT = 71-88cm |
| General.FRAME | LIGHTWEIGHT ALUMINIUM ALLOY |
| General.WHEELS | 20" SPOKED RIM |
| General.TYRES | 20" AGGRESSIVE KNOBBLY |
| General.BRAKES | HYDRAULIC FRONT & REAR |
| General.POWER | BATTERY STATUS INDICATOR |
| General.MAX LOAD | 75KG |
| Technical.MOTOR | 48V 1000w BRUSHLESS HUB MOTOR |
| Technical. BATTERY | 48v 15Ah REMOVABLE LITHIUM |
| Technical.CHARGE TIME | 5 HOURS |
| Technical.RIDE TIME | 1.2 HOURS MAX (SPEED / RIDER / TERRAIN DEPENDANT) |
| Technical.SPEED SETTINGS | SLOW = 13.6MPH / MEDIUM = 20MPH / FAST = 27MPH (APPROX) |
| Technical.DRIVE | CHAIN |
| Technical.TRANSMISSION | HUB MOTOR |
| Technical.START | ELECTRIC KEY OPERATED |
General Specifications
| PRODUCT WEIGHT | 28KG |
|---|---|
| HEIGHT DIMENSIONS | HANDLEBAR = 96cm / SEAT = 71-88cm |
| FRAME | LIGHTWEIGHT ALUMINIUM ALLOY |
| WHEELS | 20" SPOKED RIM |
| TYRES | 20" AGGRESSIVE KNOBBLY |
| BRAKES | HYDRAULIC FRONT & REAR |
| POWER | BATTERY STATUS INDICATOR |
| MAX LOAD | 75KG |
Engine & Transmission Specifications
| MOTOR | 48V 1000w BRUSHLESS HUB MOTOR |
|---|---|
| BATTERY | 48v 15Ah REMOVABLE LITHIUM |
| CHARGE TIME | 5 HOURS |
| RIDE TIME | 1.2 HOURS MAX (SPEED / RIDER / TERRAIN DEPENDANT) |
| SPEED SETTINGS | SLOW = 13.6MPH / MEDIUM = 20MPH / FAST = 27MPH (APPROX) |
| DRIVE | CHAIN |
| TRANSMISSION | HUB MOTOR |
| START | ELECTRIC KEY OPERATED |
Add your items to the cart Proceed to checkout and choose Klarna Enter your debit/credit card details Klarna's Pay in 3 / Pay in 30 days are unregulated credit agreements. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. Ts&Cs and late fees apply.
Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.
Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the engine installment and electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.
Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed. For example - carburetor set up and adjustment.
Extremely Important – Full Nut and Bolt Check
When assembling any new vehicle, and as a part of the vehicle’s ongoing basic maintenance, it is extremely important that a FULL nut & bolt check is carried out. A comprehensive nut & bolt check is crucial for ensuring the vehicle is safe to ride from the box, and for preventing potential mechanical failures caused by vibration during use.
Please DO NOT assume that all the nuts & bolts on the vehicle are adequately tightened.
We also strongly recommend that where a Nyloc type of nut is not present, please ensure that thread lock adhesive is applied to the nut. We use the ‘Loctite’ brand, with great success.
Working from the front to the back of the vehicle, it is extremely important that EVERY nut and bolt is checked for adequate tightness.
Please pay particular and close attention to the following parts (where relevant) on the vehicle –
• Wheel & axle nuts
• Brake caliper bolts
• Brake disc bolts
• Brake hose fixings
• Triple clamp bolts
• Handlebar clamp mounts
• Lever clamp bolts
• Pedal bolts
• Shock bolts
• Shock clamp bolts
• Steering stem fixings
• Tie rod (steering) arms
• Chain tensioners
• Sprocket
• Engine / motor mountings
• Exhaust mountings & manifolds
• Pedal mountings
• Swing arm bolts
• Suspension arm bolts
• Wheel spokes
• Throttle, clutch & choke cable fixings
Following these essential steps will not only ensure rider safety, but also the long-term longevity of your vehicle.
